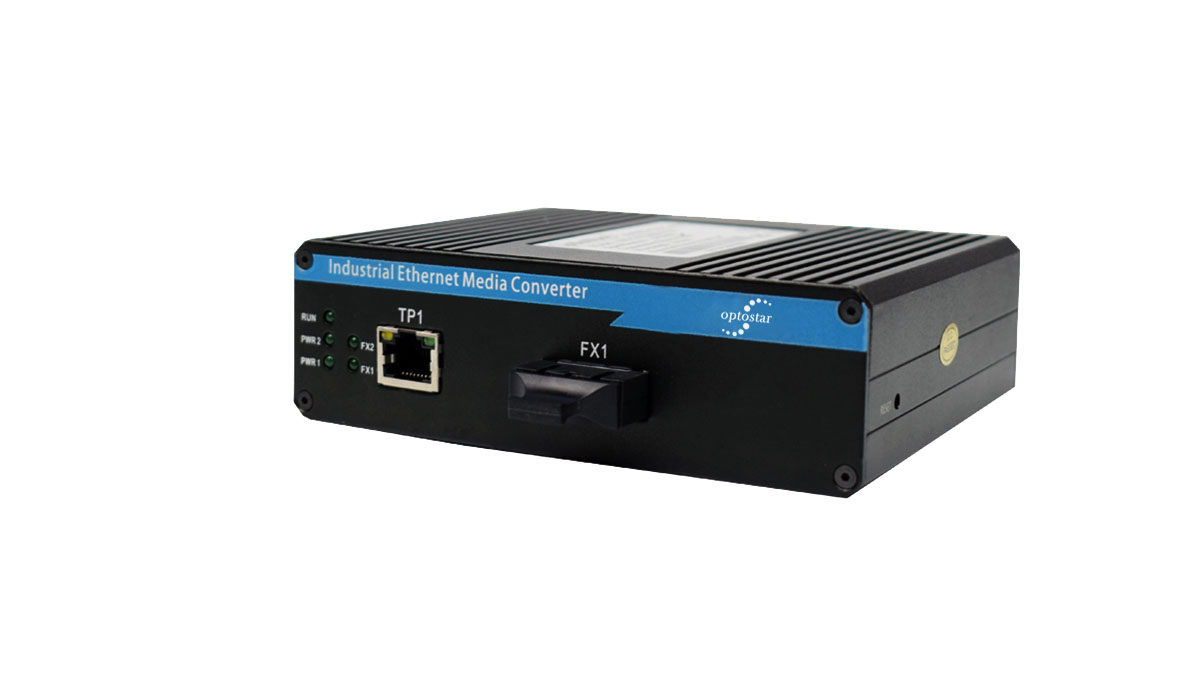

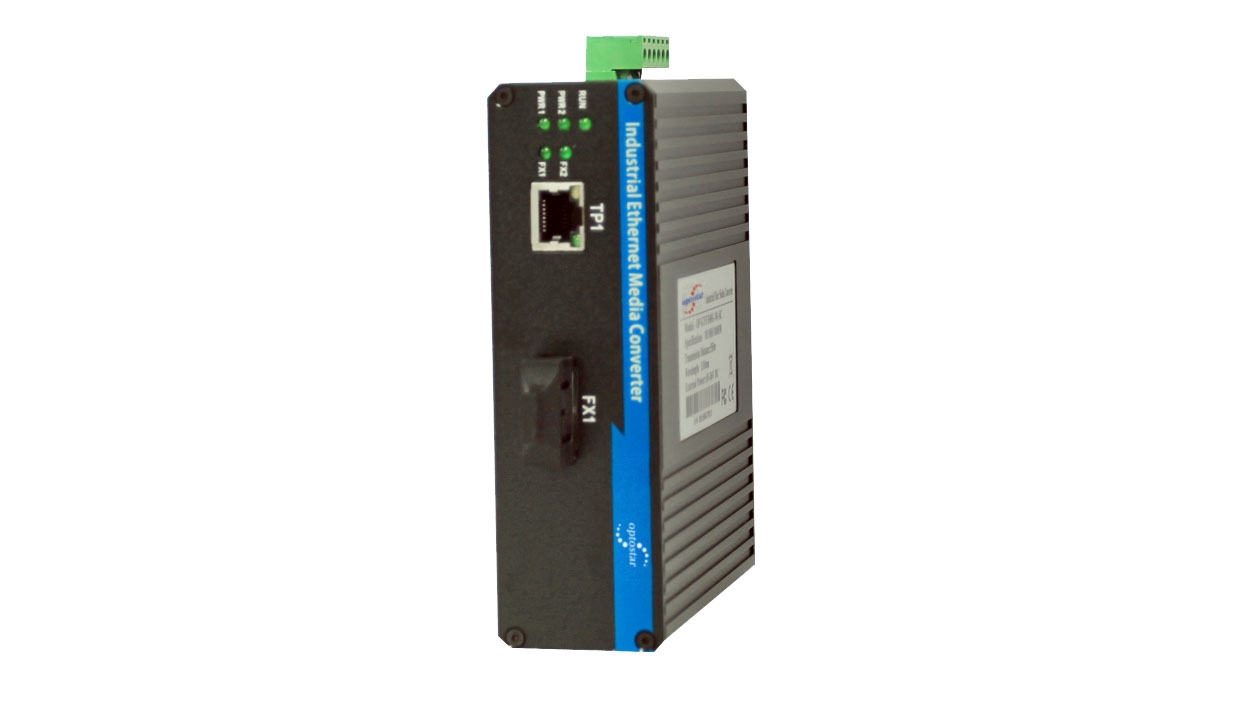

OP-EC1x71xxx-xx-xx-I industrial media converter is specially designed for industrial application, which provides fast and stable media conversion between 10/100BaseTX and 100BaseFX. It also meets the requirements of long distance, high speed, and wide broadcast.

With wide range operation temperature, alloy aluminum shell and other excellent industrial-grade design against vibration and shock, it could keep your industrial automation applications running continuously in different harsh environments.

         Product Features

  • 1*10/100Base-TX port and 1*100Base-FX port
  • 10/100M auto-negotiation , Full/Half duplex mode, auto-MDI-MDI-X
  • Super lightening protection, IP40 protection
  • Excellent heat elimination without cooling fan
  • Redundant dual DC power inputs
  • -40℃-85℃ operating temperature range
  • Wavelength: 1310nm/1550nm
  • Up to 20km,40km,60km,80km transmission distance with single-mode
  • Support IEEE802.3u, 100Base-FX,IEEE802.3,IEEE802.3u,10/100Base-TX


PARAMETER APPLICATION DOWNLOAD CONTACT US

PARAMETER

Standard
IEEE802.3u, 100Base-FX
IEEE802.3, IEEE802.3u, 10/100Base-TX
Safety: UL 60950-1
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
Industry: IEC61000-6-2
Rail: EN50155, EN50121-4
Traffic: NEMA TS-2
EMS
EN61000-4-2 (ESD),Level 3
EN61000-4-3 (RS),Level 3
EN61000-4-4 (EFT),Level 3
EN61000-4-5 (Surge),Level 3
EN61000-4-6 (CS),Level 3
Copper Port
10/100Base-TX auto negotiation speed
Full/Half duplex mode
Auto MDI-MDI-X connection
Up to 100M Cat-5 transmission distance
Fiber Port
Rate: 100Mbps
Wavelength: 1310nm/1550nm
Up to 2Km transmission distance with multi-mode
Up to 20km,40km,60km,80km transmission distance with single-mode
SC/ST/FC interfaces optional
Switch Properties
MAC Table Size: 2K
Packet Buffer Size: 1Mbit
Processing Type: Store and Forward
Exchange Properties: 148800pps (100M)
Power

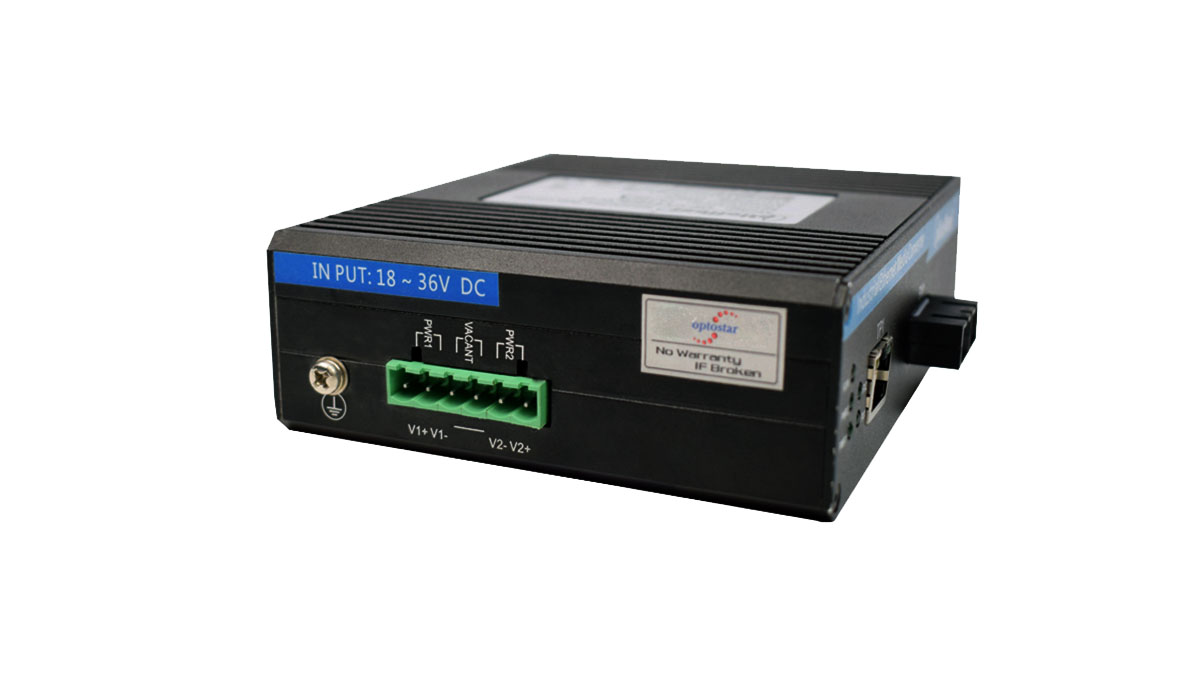

Input Voltage: 24V DC(18-36VDC), Redundant dual inputs
Input Current: <0.5A @24VDC
Overload Current Protection: Present
Reverse Polarity Protection: Present
Redundant Protection: Present
Connection: 1 removable 6-pin terminal blocks
Environmental Limits
Operating Temperature: -40℃-85℃
Storage Temperature: -40℃-85℃
Ambient Relative Humidity: 5%-95% (non-condensing)
Warranty
5 years
Physical Characteristics
Housing: Aluminum Alloy material with IP40 Protection
Dimension: 138mm(L) X 112mm(W) X 42mm(H)
Weight: 480g

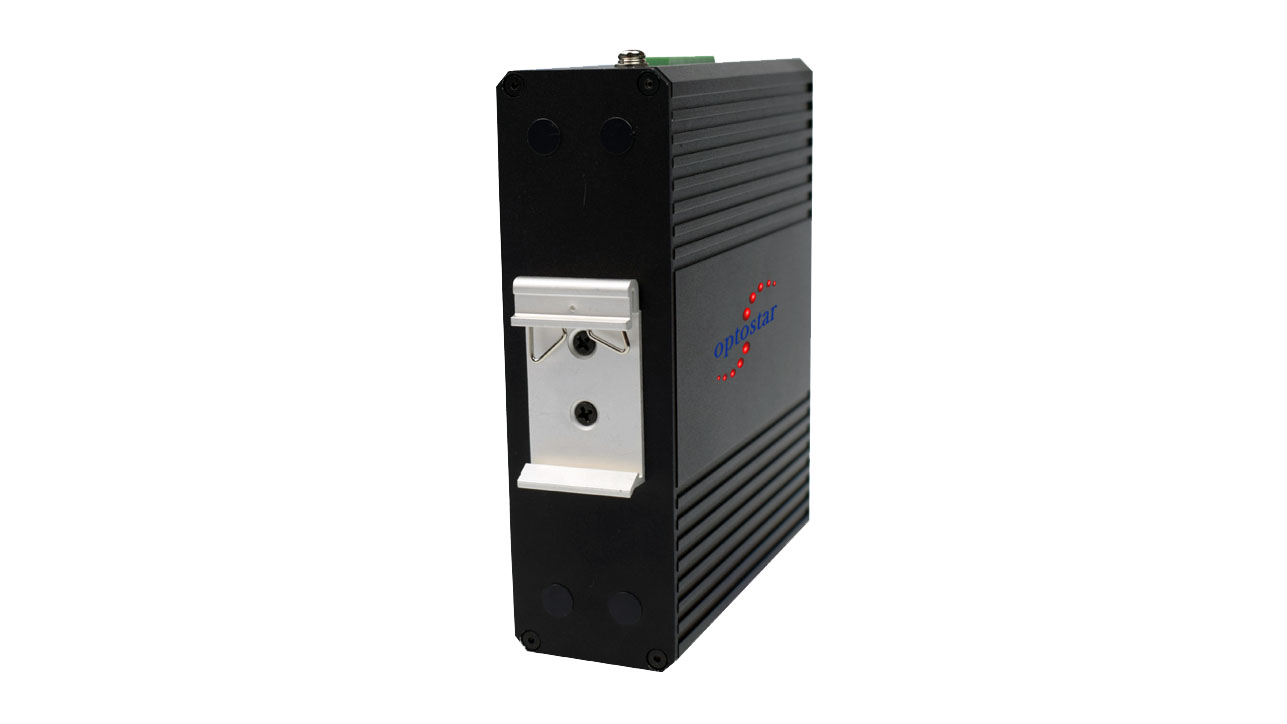

Installation: Din-Rail mounting, Wall mounting

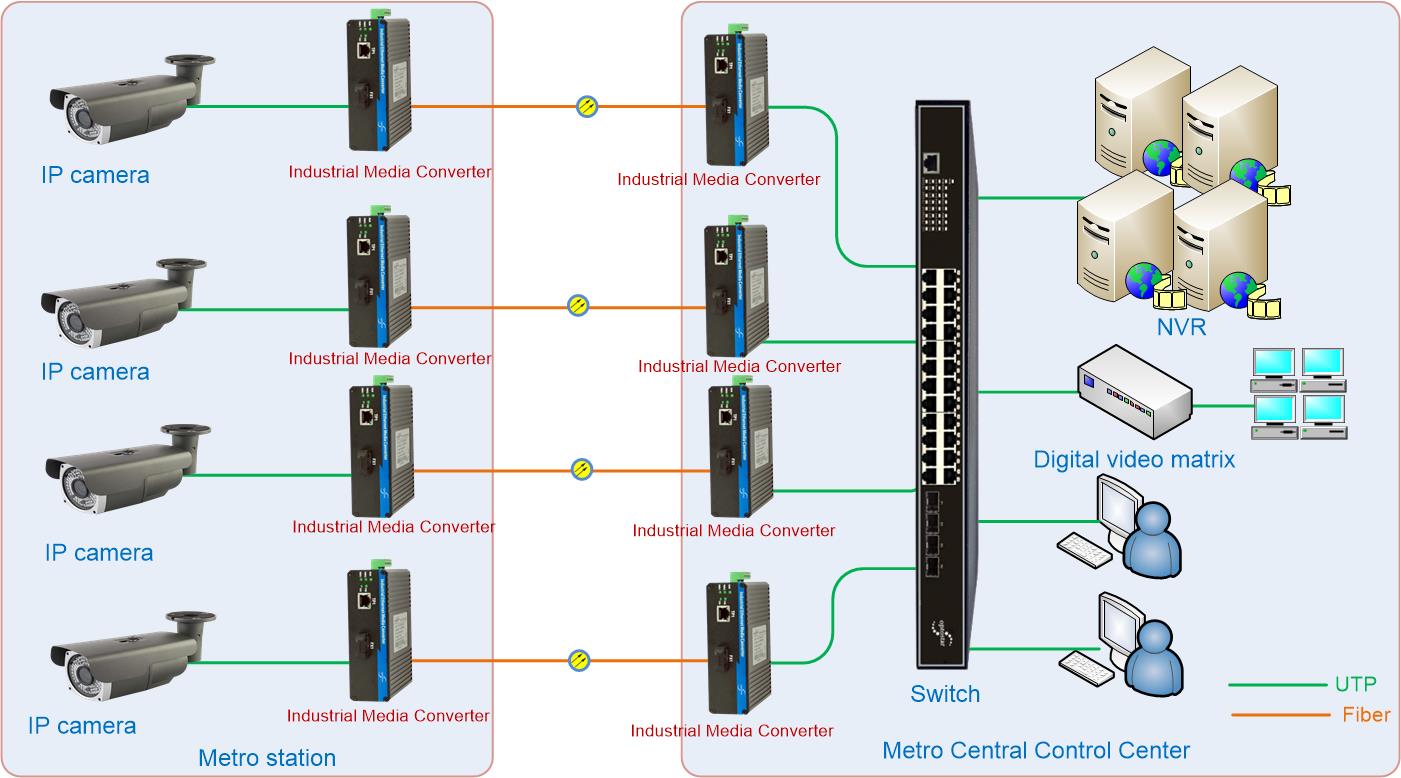

APPLICATION




DOWNLOAD

Model No.
Data Rate
Fiber Mode
Wavelength
Fiber Connector
Distance
Power Supply
DownLoad
OP-EC1M712x1-11-2-I
10/100M
MMF
1310nm
SC/ST/FC
2km
Internal.DC24
OP-EC1S712x1-11-20-I
10/100M
SMF
1310nm
SC/ST/FC
20km
Internal.DC24
OP-EC1S713x1-11-20-I
10/100M
SMF
1550nm
SC/ST/FC
20km
Internal.DC24
OP-EC1S712x1-11-40-I
10/100M
SMF
1310nm
SC/ST/FC
40km
Internal.DC24
OP-EC1S713x1-11-40-I
10/100M
SMF
1550nm
SC/ST/FC
40km
Internal.DC24
OP-EC1S712x1-11-60-I
10/100M
SMF
1310nm
SC/ST/FC
60km
Internal.DC24
OP-EC1S713x1-11-60-I
10/100M
SMF
1550nm
SC/ST/FC
60km
Internal.DC24
OP-EC1S712x1-11-80-I
10/100M
SMF
1310nm
SC/ST/FC
80km
Internal.DC24
OP-EC1S713x1-11-80-I
10/100M
SMF
1550nm
SC/ST/FC
80km
Internal.DC24
OP-EC1M715x1-11-2-I
10/100M
MM Bi-di
TX1310/RX1550nm
SC/ST/FC
2km
Internal.DC24
OP-EC1M717x1-11-2-I
10/100M
MM Bi-di
TX1550/RX1310nm
SC/ST/FC
2km
Internal.DC24
OP-EC1S715x1-11-20-I
10/100M
SMF Bi-di
TX1310/RX1550nm
SC/ST/FC
20km
Internal.DC24
OP-EC1S717x1-11-20-I
10/100M
SMF Bi-di
TX1550/RX1310nm
SC/ST/FC
20km
Internal.DC24
OP-EC1S715x1-11-40-I
10/100M
SMF Bi-di
TX1310/RX1550nm
SC/ST/FC
40km
Internal.DC24
OP-EC1S717x1-11-40-I
10/100M
SMF Bi-di
TX1550/RX1310nm
SC/ST/FC
40km
Internal.DC24
OP-EC1S715x1-11-60-I
10/100M
SMF Bi-di
TX1310/RX1550nm
SC/ST/FC
60km
Internal.DC24
OP-EC1S717x1-11-60-I
10/100M
SMF Bi-di
TX1550/RX1310nm
SC/ST/FC
60km
Internal.DC24
OP-EC1S715x1-11-80-I
10/100M
SMF Bi-di
TX1310/RX1550nm
SC/ST/FC
80km
Internal.DC24
OP-EC1S717x1-11-80-I
10/100M
SMF Bi-di
TX1550/RX1310nm
SC/ST/FC
80km
Internal.DC24
Note:
Fiber Connector is SC,x=1
Fiber Connector is ST,x=2
Fiber Connector is FC,x=3
