The series equipment is in PDH optical fiber transmission, the company developed, based on the special large scale integrated circuit, point to point optical transmission equipment research and development. The device provides 1 ~ 16 E1 interface; 1 ~ 3 10/100M Fast Ethernet interface (Ethernet interface to exchange, wire speed 100M, support VLAN division (logical isolation)); 1 FX optical Ethernet interface; 1 Console; 1 extended service interface can be used as E1 signal, RS232/ (asynchronous RS485/RS422 data, FXO/FXS or EM2/4 line of speech signal, the switch quantity signal, Ethernet signal (bandwidth 2M) such as transmission channel); 1 digital business telephone; the application is flexible, has the alarm function, the operation is stable and reliable, low power consumption, high integration degree.

         Product Features

  • Based on proprietary integrated circuit.
  • 1-16 E1 channel transparent transmission; E1 coding is HDB3, fully compliant with ITU-T G.703, G.823 and G.742 recommendations;
  • ? 1-3 road provides wire-speed electrical interface 100M 100M optical Ethernet and 1 Ethernet, support each negotiation, Ethernet bandwidth settings are based on 32K;
  • Ethernet full duplex / half duplex adaptive, 10 / 100M adaptive; Ethernet packet size of 1916 bytes;
  • optical port transfer rate is 155 / 350Mbps, transmission distance up to 25Km, 40Km, 60Km, 80Km or 120Km;
  • with a complete alarm function, you can see the status of the distal end of the device;
  • Support E1 loopback test, easy to monitor and manage the equipment;
  • System Power AC220V, DC-48V optional.


PARAMETER APPLICATION DOWNLOAD CONTACT US

PARAMETER

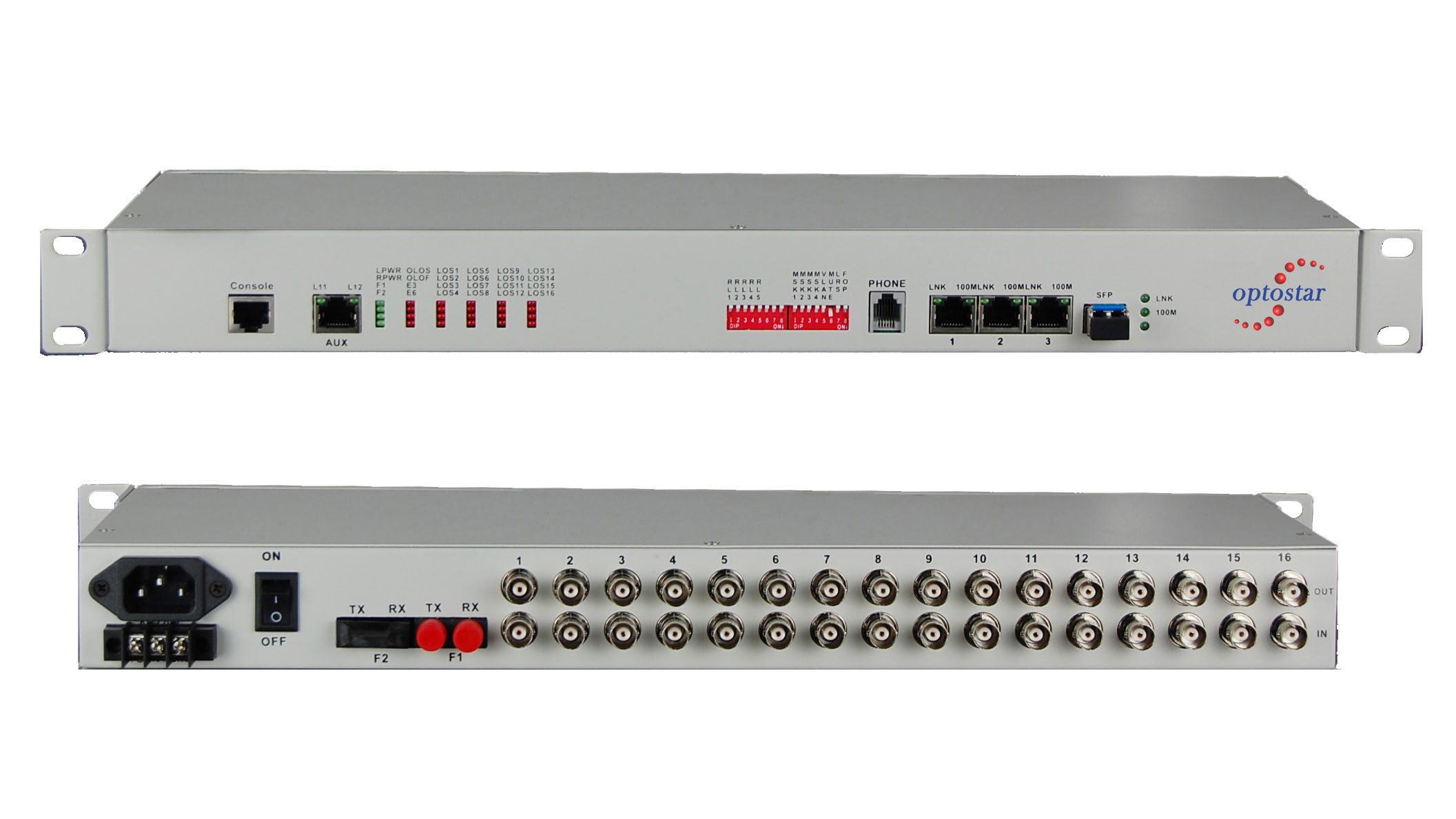

OP-PDH-16E1+3FE+FX-1+1_PDH_Multiplexer
Optical interface
Multi-mode Fiber
Diameter of fiber core 50/125um, 62.5/125um
Transmission distance 5Km @ 62.5 / 125um single mode fiber, attenuation (3dbm/km)Wave Length: 820nm
Transmitting power -12dBm (Min) ~-9dBm (Max)
Receiver sensitivity -28dBm (Min)
Link budget 16dBm
Connector SC/FC
Single-mode Fiber
Diameter of fiber core  8/125um, 9/125um
Transmission distance  40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)
Wave Length 1310nm
Transmitting power -9dBm (Min) ~-8dBm (Max)
Receiver sensitivity -27dBm (Min)
Link budget 18dBm
E1  Interface
Interface rate n*64Kbps±50ppm
Interface Standard comply with protocol G.703
Interface Code HDB3
E1 Impedance 75Ω (unbalance), 120Ω (balance)
Jitter tolerance  In accord with protocol G.742 and G.823
Allowed Attenuation  0~6dBm
Ethernet interface (10/100M)
Interface rate 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard  Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability 4096
Connector RJ45, support Auto-MDIX
Dimension
 Product Size:  485X138X45mm(WXDXH)
Simple packaging: 522X198X82mm(WXDXH)
Piece Weight 3KG
Operation Environment
Operating temperature -10°C~50°C
Storing temperature -40°C~+80°C
Working Humidity 5%~95 % (no condensation)
Storage Humidity  5%~95 % (no condensation)
No causticity and solvent, dust free, and no strong magnetic interference.
Power
Voltage AC180V ~ 260V;DC –48V;DC +24V
Consumption ≤10W
Warranty 2 Year Warranty, Life-time Maintenance
