Framed E1-FE+16RS232 Protocol Converter is based on FPGA, providing one framed E1 interface, one Ethernet interface and 8 serial interfaces to achieve 10/100Base-T Ethernet data transmission on the E1 channel. Providing one Ethernet Bridge plus 8 serial interfaces via one E1 interface;

         Product Features

  • Based on self copyright IC.
  • Can realize monitor and control of remote equipment, OAM management data did not take up user’s timeslot and save E1 bandwidth
  • E1 supports any timeslot set, the rate is 64K-2048K
  • The local device can forced the remote device rate follow it
  • Have indicator when the remote device is power-off or E1 line is broken or lose signal;
  • Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop return;
  • The Ethernet interface supports jumbo frames (2036 Bytes);
  • Ethernet interface supports 10M/100M, half/full duplex auto- Negotination, support VLAN
  • Ethernet interface supports AUTO-MDIX (crossed line and straightly connected line self-adaptable );
  • Have Ethernet monitor self-reset function, the equipment will not dead
  • Provide 2 clock types: E1 master clock and E1 line clock;
  • Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
  • Support SNMP Network Management
  • Serial Data Interface can be RS232/RS422/RS485/TTL optional
  • Serial channel can transmit adaptable serial data asynchronously 300 Kbps-19200Kbps baud rate


PARAMETER APPLICATION DOWNLOAD CONTACT US

PARAMETER


OP-PC-E1-FE+16RS232   Framed E1-FE+16RS232 Protocol Converter
Ethernet interface (10/100M)
Interface rate 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability 4096
Connector RJ45, support Auto-MDIX
E1 Interface
Interface rate n*64Kbps±50ppm
Interface Standard comply with protocol G.703
Interface Code HDB3
E1 Impedance 75Ω (unbalance), 120Ω (balance)
Jitter tolerance In accord with protocol G.742 and G.823
Allowed Attenuation 0~6dBm
Serial Interface
Standard EIA/TIA-232 RS-232 (ITU-T V.28)
EIA/TIA-422 RS-422 (ITU-T V.11)
EIA/TIA-485 RS-485 (ISO/IEC8284)
Serial Interface RS-422: TXD+, TXD-, RXD+, RXD-, Signal Ground
RS-485 4 wires: TXD+, TXD-, RXD+, RXD-, Signal Ground
RS-485 2 wires: Data+(Correspond TX+), Data-(Correspond TX-), Signal Ground
RS-232: RXD, TXD, Signal Ground
Dimension
Product Size 216X140X31mm(WXDXH)
Simple packaging 274X193X84mm(WXDXH)
Piece Weight 1.2KG
Operation Environment
Operating temperature -10°C ~ 50°C
Storing temperature -40°C ~ 80°C
Relative humidity 5%~95 % (no condensation)
No causticity and solvent, dust free, and no strong magnetic interference.
Power
Voltage AC180V ~ 260V;DC –48V;DC +24V
Consumption ≤5W
Warranty 2 Year Warranty, Life-time Maintenance

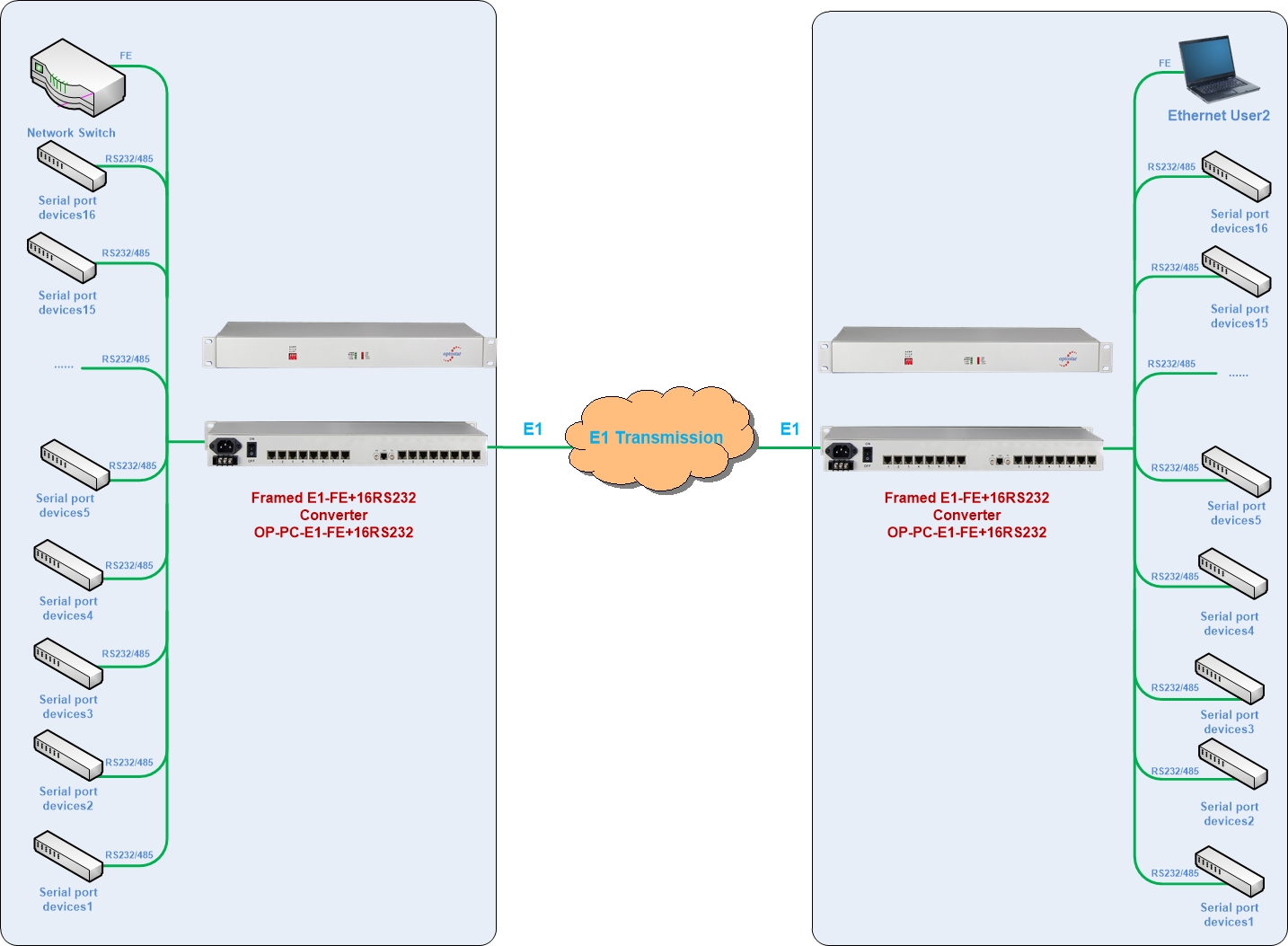

APPLICATION






DOWNLOAD

Model
Description
DownLoad
OP-PC-E1-FE+16RS232 Framed E1-FE+16RS232 Protocol Converter

Package Include
No
Package List
1
Framed E1-FE+16RS232 Protocol Converter
2
User Guide
3
Warranty Card
