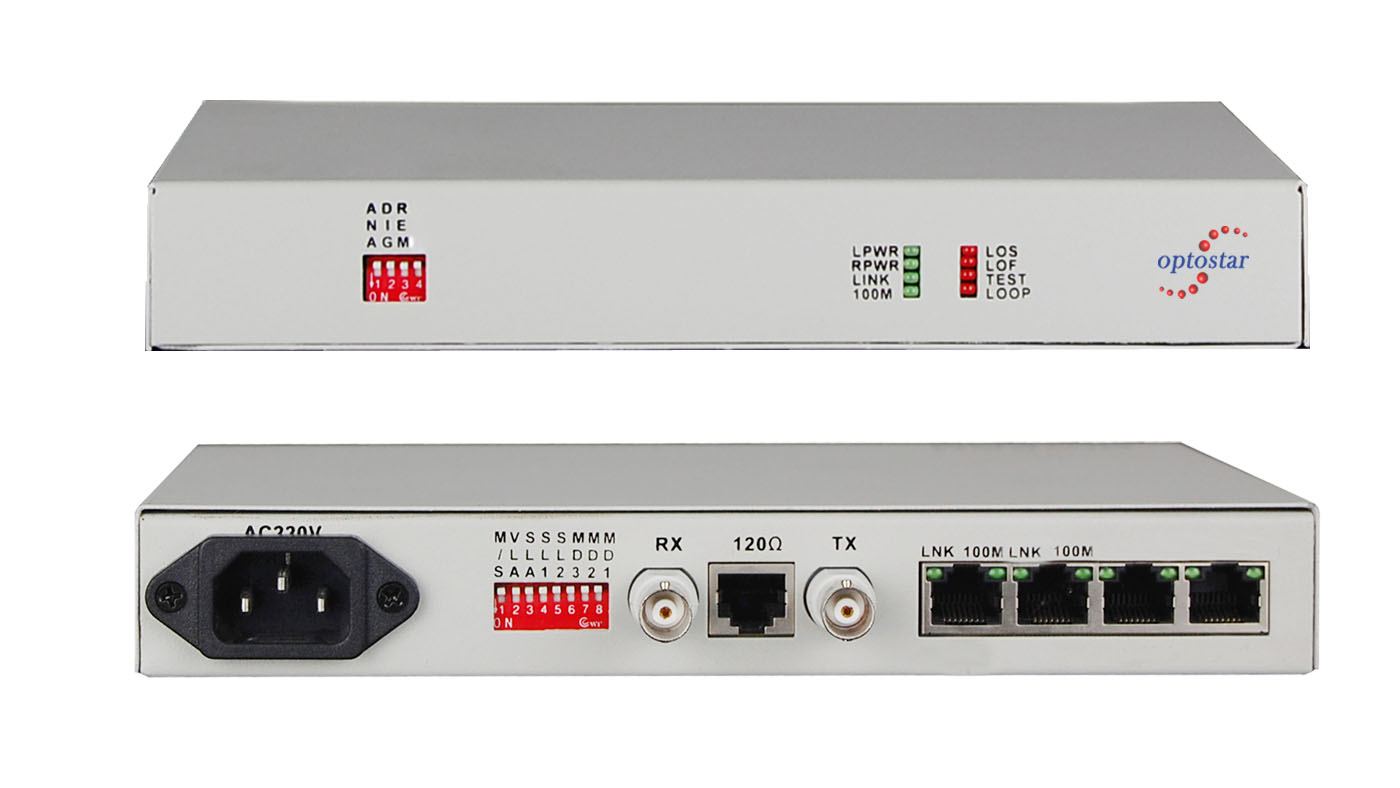

OP-PC-E1-2FE-P is based on FPGA. Multiplex 10/100Base-T Ethernet 2Channel interface to E1 interface to provide users with Ethernet access at the rate of 1984K. It is widely used in finance, securities and security departments which need to be provided two different networks, and both on a physical network can be completely separated. For example, the financial system business network, internal office network and business network can't be linked together. This interface multiplexer can solve this problem.

         Product Features

  • Based on self copyright IC.
  • Can realize 2Channel Ethernet data transmission by 1 E1 circuits
  • Inter-set dynamic Ethernet MAC address (4,096) with local data frame filtering function
  • 2Channel Ethernet rate is 1984Kbps, set up the first channel rate, the second channel Ethernet rate automatic allocation
  • The local device can forced the remote device rate follow it
  • Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop return;
  • Can set the E1 line that not to send the LINK signal to Ethernet interface while E1 line is broken;
  • The Ethernet interface supports jumbo frames (2036 Bytes);
  • Support SNMP Network Management;
  • Ethernet interface supports10M/100M, half/full duplex auto- Negotination and AUTO-MDIX(crossed line and straightly connected line self-adaptable );
  • Have Ethernet monitor self-reset function, the equipment will not dead
  • Can achieve the remote device setting any 5 mode of Ethernet and can closed the AUTO-MDIX function;
  • Provide 2 clock types: E1 master clock and E1 line clock;
  • Have three Loop Back Mode: E1 interface Loop Back (ANA)、Ethernet interface Loop Back(DIG)、Command the remote Ethernet interface Loop Back(REM)
  • Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;


PARAMETER APPLICATION DOWNLOAD CONTACT US

PARAMETER


OP-PC-E1-2FE-P   E1-2FE Physical lsolation Protocol Converter
Ethernet interface (10/100M)
Interface rate 10/100 Mbps, half/full duplex auto-negotiation
Interface Standard Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability 4096
Connector RJ45, support Auto-MDIX
E1 Interface
Interface rate n*64Kbps±50ppm
Interface Standard comply with protocol G.703
Interface Code HDB3
E1 Impedance 75Ω (unbalance), 120Ω (balance)
Jitter tolerance In accord with protocol G.742 and G.823
Allowed Attenuation 0~6dBm
Dimension
Product Size 216X140X31mm(WXDXH)
Simple packaging 274X193X84mm(WXDXH)
Piece Weight 1.2KG
Operation Environment
Operating temperature -10°C ~ 50°C
Storing temperature -40°C ~ 80°C
Relative humidity 5%~95 % (no condensation)
No causticity and solvent, dust free, and no strong magnetic interference.
Power
Voltage AC180V ~ 260V;DC –48V;DC +24V
Consumption ≤5W
Warranty 2 Year Warranty, Life-time Maintenance

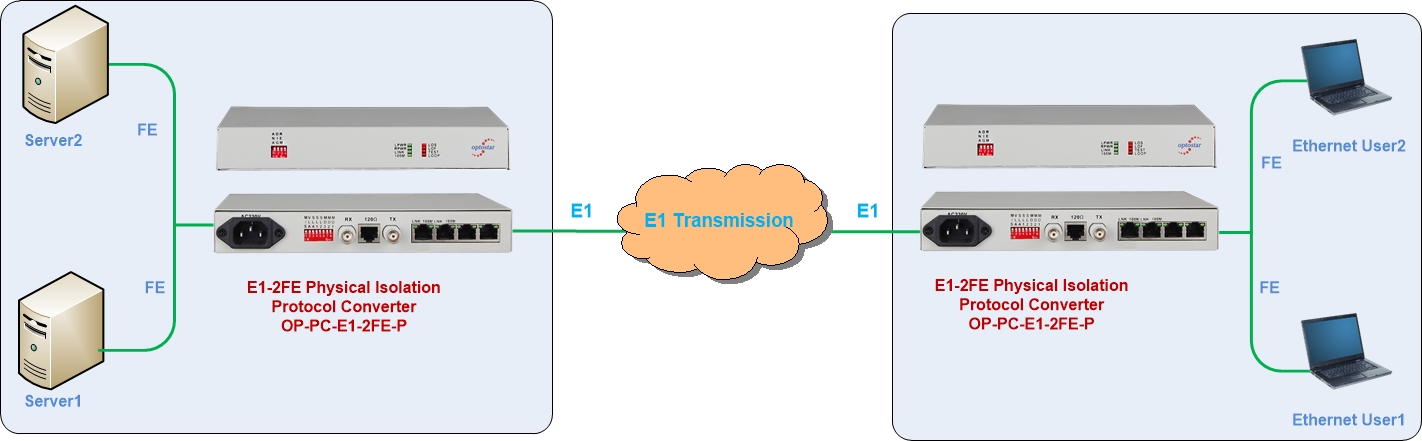

APPLICATION






DOWNLOAD

Model
Description
DownLoad
OP-PC-E1-2FE-P E1-2FE Physical lsolation Protocol Converter

Package Include
No
Package List
1
E1-2FE Physical lsolation Protocol Converter
2
User Guide
3
Warranty Card
