E1-31 Channel RS232 RS422 RS485 Protocol Converter is based on FPGA, providing 31Channel RS232/485/422 transmission on E1 interface. The product breaks through contradictions between traditional serial interface communication distance and communication rate, besides, it also can solve electromagnetic interference, ground ring interference and lightning damage. The device greatly improves reliability, security and confidentiality of data communication. It is widely used for various industrial control, process control and traffic control occasions, especially for Bank, and Power and other sectors and systems which have special requirements of electromagnetic interference environment. RS232/RS485/RS422 channel can transmit adaptable serial data asynchronously 0Kbps-19200Kbps baud rate.

         Product Features

  • Based on self copyright IC.
  • Support 3 line RS232 (TXD,RXD,GND), support for flow control CD,DSR,CTS
  • Have three Loop Back Mode: E1 interface Loop Back (ANA)、RS232/485/422 interface Loop Back(DIG)、Command the remote RS232/485/422 interface Loop Back(REM)
  • RS232/RS485/RS422 supports hot-plug, supports DTE or DCE device interconnection
  • RS232/RS485/RS422 channel can transmit adaptable serial data asynchronously 0Kbps-57600Kbps baud rate
  • Have pseudo random code test function, easily line opened, can be used as a 2M BER Tester
  • Serial port interface lightning-protection reached IEC61000-4-5 (8/20μS) DM(Differential Mode): 6KV, Impedance (2 Ohm), CM(Common Mode): 6KV, Impedance (2 Ohm) standard
  • Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
  • AC 220V, DC-48V, DC+24V, DC Power and Polarity-Free


PARAMETER APPLICATION DOWNLOAD CONTACT US

PARAMETER


OP-PC-E1-31RS232422485   E1-31RS232 RS422 RS485 Protocol Converter
E1 Interface
Interface rate 2048Kbps±50ppm
Interface Standard comply with protocol G.703
Interface Code HDB3
E1 Impedance 75Ω (unbalance), 120Ω (balance)
Jitter tolerance In accord with protocol G.742 and G.823
Allowed Attenuation 0~6dBm
Serial Interface
Standard EIA/TIA-232 RS-232 (ITU-T V.28)
EIA/TIA-422 RS-422 (ITU-T V.11)
EIA/TIA-485 RS-485 (ISO/IEC8284)
Serial Interface RS-422: TXD+, TXD-, RXD+, RXD-, Signal Ground
RS-485 4 wires: TXD+, TXD-, RXD+, RXD-, Signal Ground
RS-485 2 wires: Data+(Correspond TX+), Data-(Correspond TX-), Signal Ground
RS-232: RXD, TXD, Signal Ground
Dimension
Product Size 216X140X31mm(WXDXH)
Simple packaging 274X193X84mm(WXDXH)
Piece Weight 1.2KG
Operation Environment
Operating temperature -10°C ~ 50°C
Storing temperature -40°C ~ 80°C
Relative humidity 5%~95 % (no condensation)
No causticity and solvent, dust free, and no strong magnetic interference.
Power
Voltage AC180V ~ 260V;DC –48V;DC +24V
Consumption ≤5W
Warranty 2 Year Warranty, Life-time Maintenance

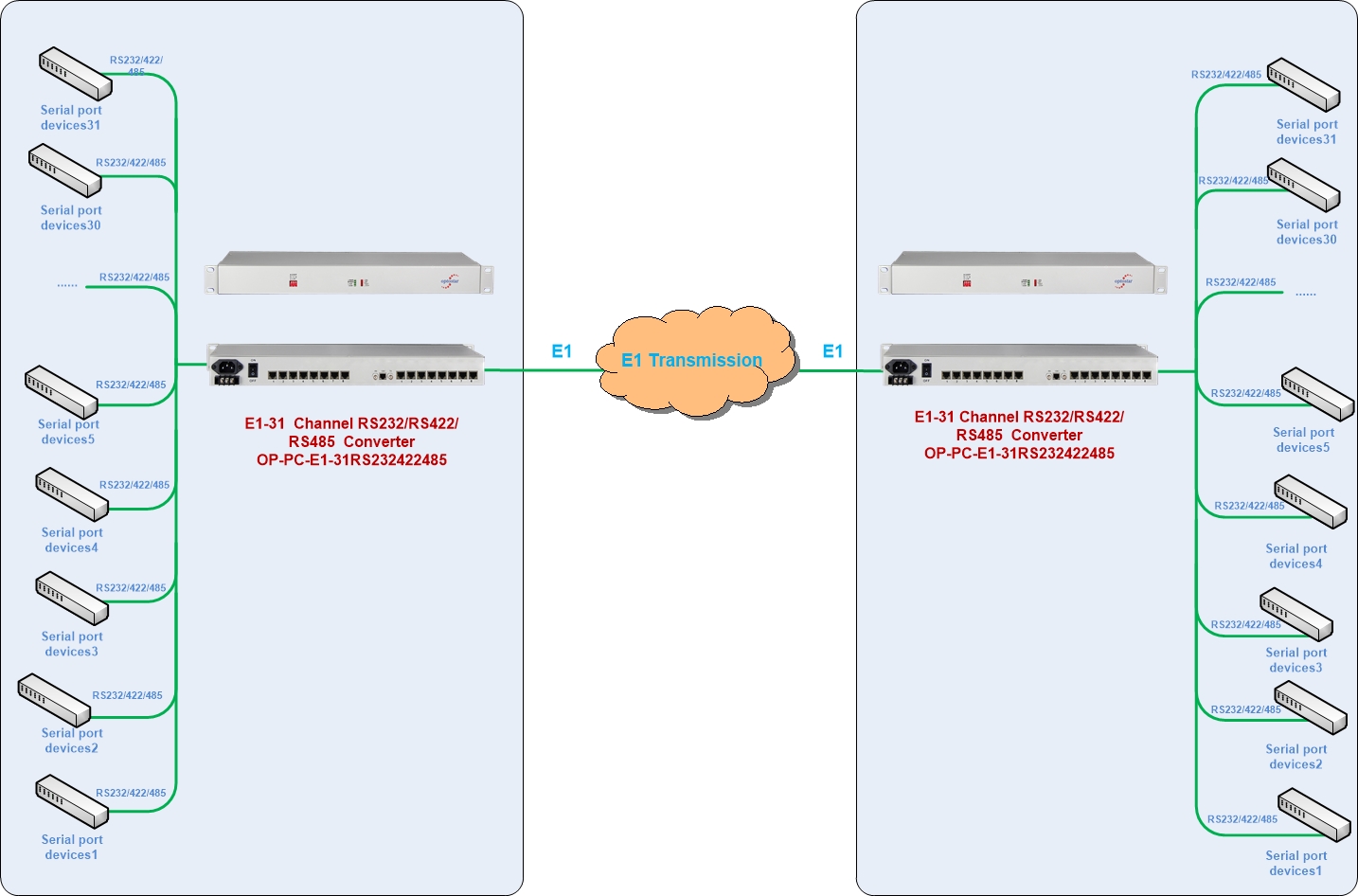

APPLICATION






DOWNLOAD

Model
Description
DownLoad
OP-PC-E1-31RS232422485 E1-31RS232 RS422 RS485 Protocol Converter

Package Include
No
Package List
1
E1-31RS232 RS422 RS485 Protocol Converter
2
User Guide
3
Warranty Card
