OP-SDH-8E1+4FE 8E1+4FE SDH Multiplexer is a new generation multi-services transmission and access device based on SDH technologies. The function models design adopts G.783 suggestions and provides complete monitor, access, protection, network management and Ethernet access function. SDH155 can provide 2 STM-1 uplink interfaces, 8 E1 interfaces and 4 10/100BaseT Ethernet interfaces. It adopts modular structure design for flexible service configurations according to different requirements. It can be used as service access and transmission devices on access layer in the data traffic networks, adopts SNMP network management platform which provides grades powerful management based on Service/Client end mode.

         Product Features

  • High-integration, modularized design.
  • Provide 2 STM-1 uplink interfaces.
  • Provide 1+1 channel protection, realize fast protection switching.
  • 8 E1 interfaces and 4 10/100BaseT Ethernet interfaces.
  • Complete clock function, provide clock tracking and holding functions.
  • 2.048Mbit/s external synchronous signal input/output.
  • Clock resource can select line clock, external clock or free-run.
  • Via SNMP network management system, user can do operations for device and network formed by it and the operations include configuration, maintenance and monitor.
  • Network management can realize five major functions included: configuration, alarm, performance, maintenance and security which satisfy with ITU-T suggestions.
  • Provide Console interface, support local management via serial port on PC.
  • For Ethernet service, GFP and LAPS technology is used, have LCAS function.


PARAMETER APPLICATION DOWNLOAD CONTACT US

PARAMETER

OP-SDH-8E1+4FE    8E1 PDH Multiplexer
Optical interface
Interface Standard Complies with ITU-T G.957/G.958
Port Number 2
Transmission distance 0~120Km for option
Wave Length 1310nm
Rate 155.520Mb/s±4.6ppm
Fiber type ITU-T G.652/G.653, SM
Receiving sensitivity <-36 (BER<10)
Connector SC/FC
E1 Interface
Interface rate 2048Kb/s±50ppm
Port Number 8
Interface Standard comply with protocol G.703
Interface Code HDB3
E1 Impedance 75Ω (unbalance), 120Ω (balance)
Jitter tolerance In accord with protocol G.742 and G.823
Allowed Attenuation 0~6dBm
Ethernet interface (10/100M)
Interface rate 10/100 Mbps, half/full duplex auto-negotiation
Port Number 4
Interface Standard Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Capability can learn 1024 MAC address
Connector RJ45, support Auto-MDIX
Ethernet total cache 64MBits SDRAM
Dimension
Product Size 1U/19 inch: 483*126*44mm(WXDXH)
Simple packaging: 510X140X56mm(WXDXH)
Piece Weight 3KG
Operation Environment
Operating temperature 0°C~50°C
Storing temperature -20°C~70°C
Working Humidity 5%~95 % (no condensation)
Storage Humidity 5%~95 % (no condensation)
No causticity and solvent, dust free, and no strong magnetic interference.
Power
Voltage AC180V ~ 260V;DC –48V;DC +24V
Consumption ≤7W
Warranty 2 Year Warranty, Life-time Maintenance

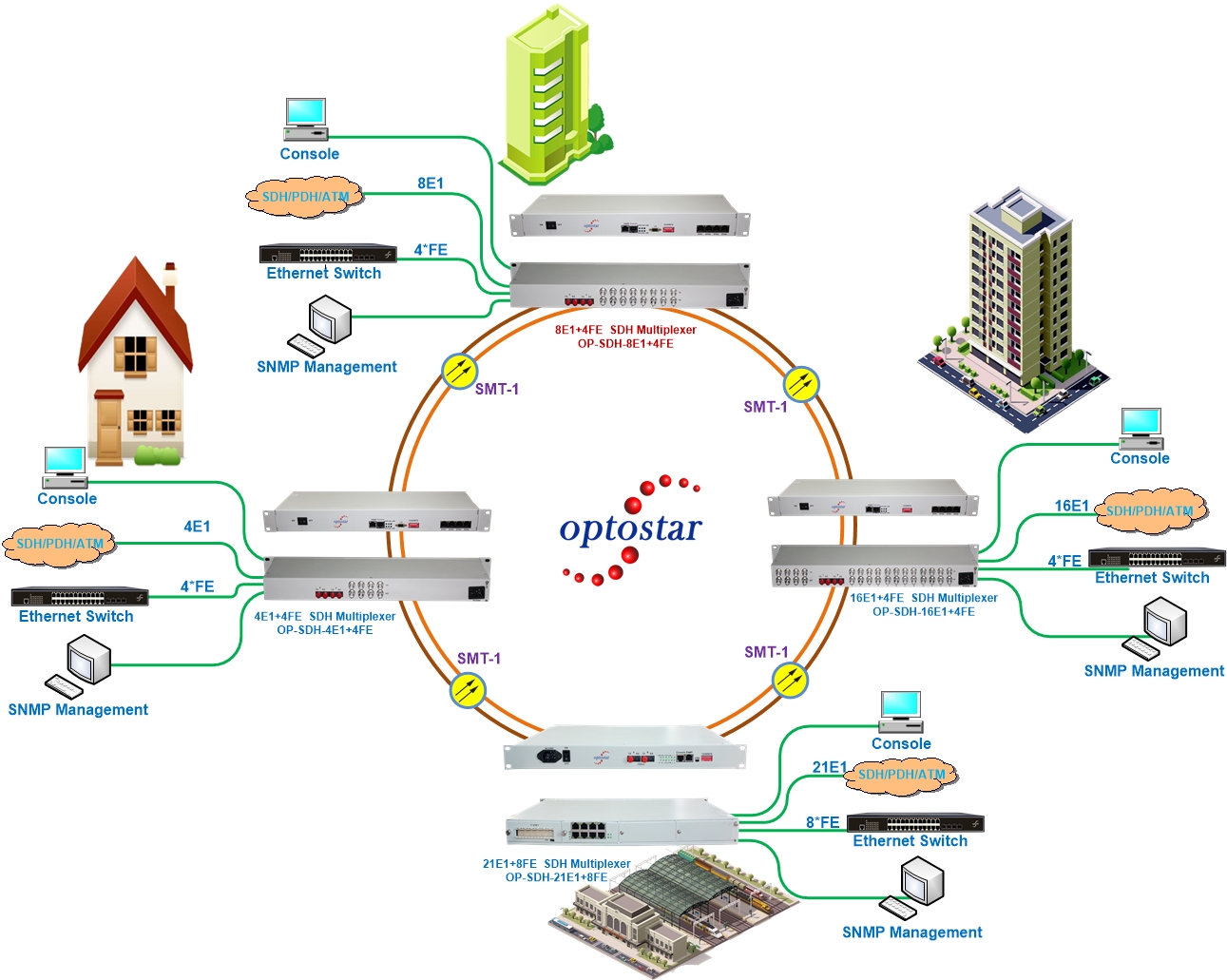

APPLICATION




DOWNLOAD

Model
Description
DownLoad
OP-SDH-8E1+4FE 8E1+4FE SDH Multiplexer

Package Include
No
Package List
1
8E1+4FE SDH Multiplexer
2
User Guide
3
Warranty Card
