                               Home> Passive Products> Splitter> PLC splitter

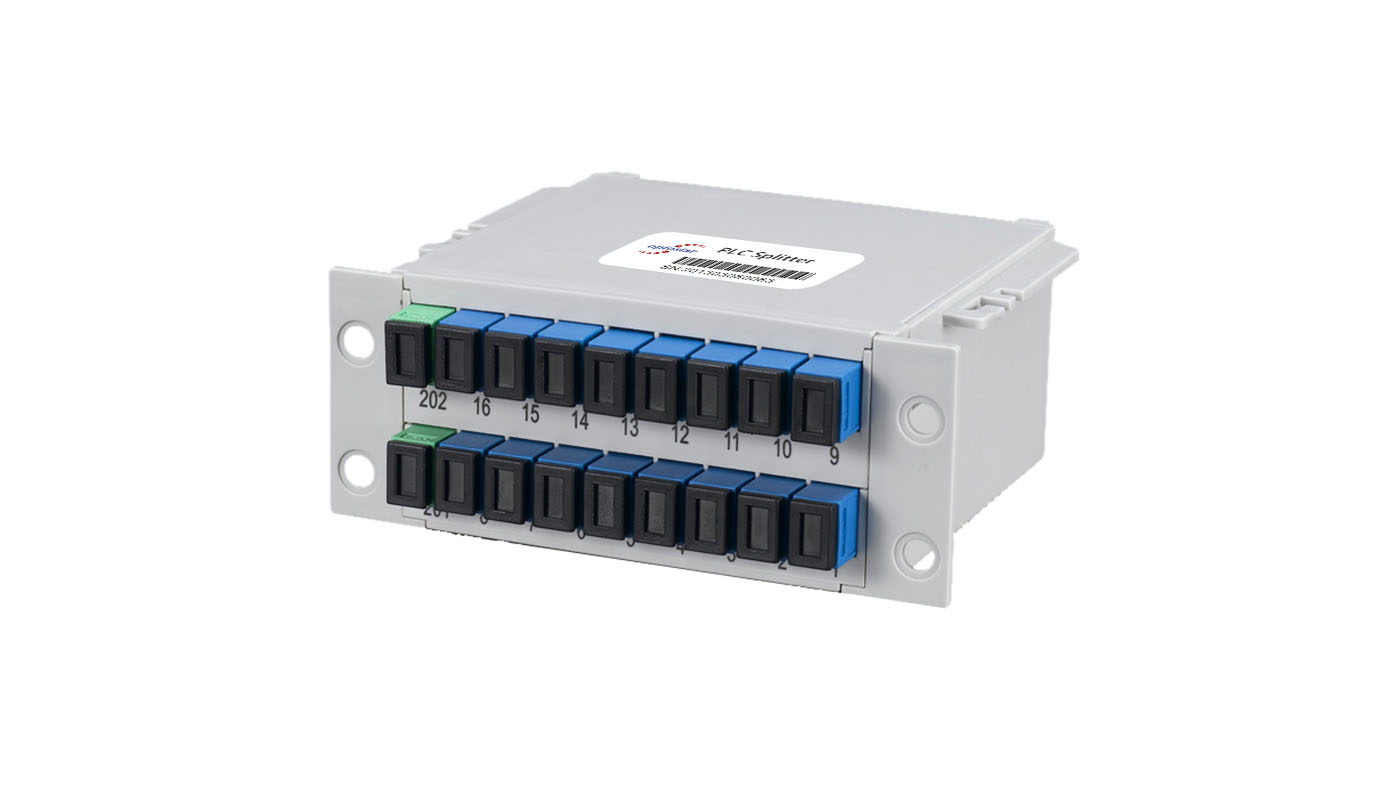

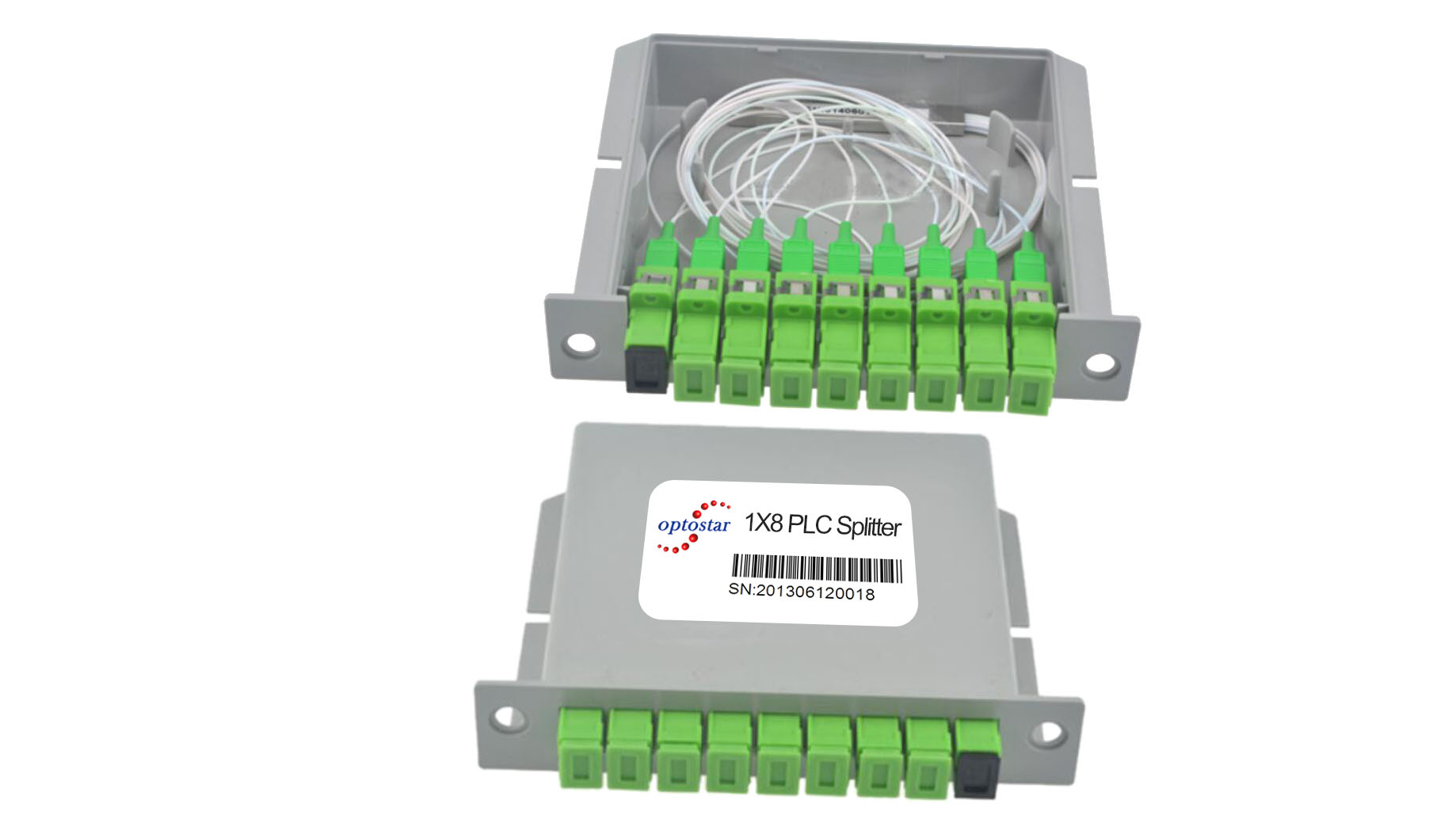

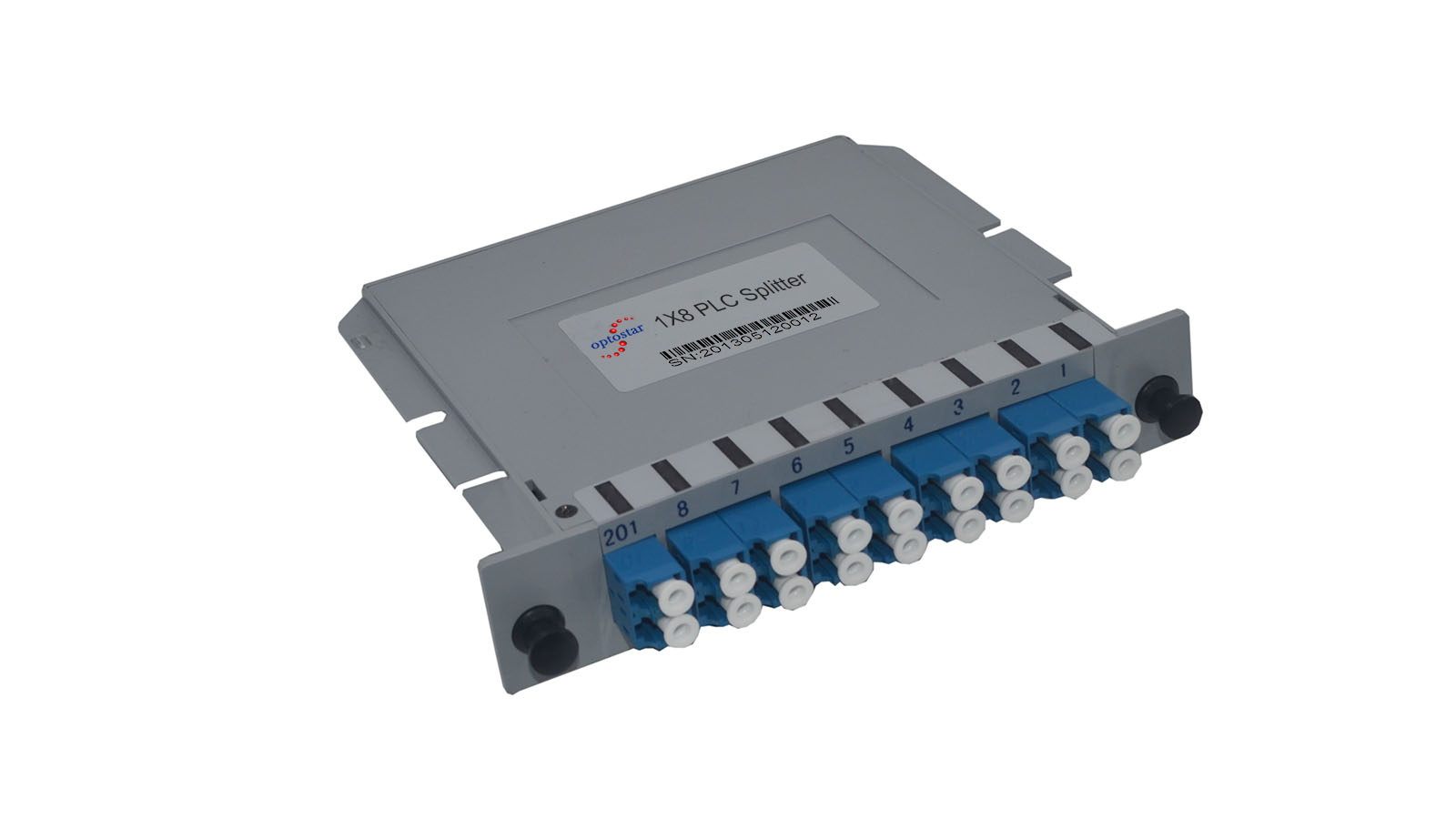

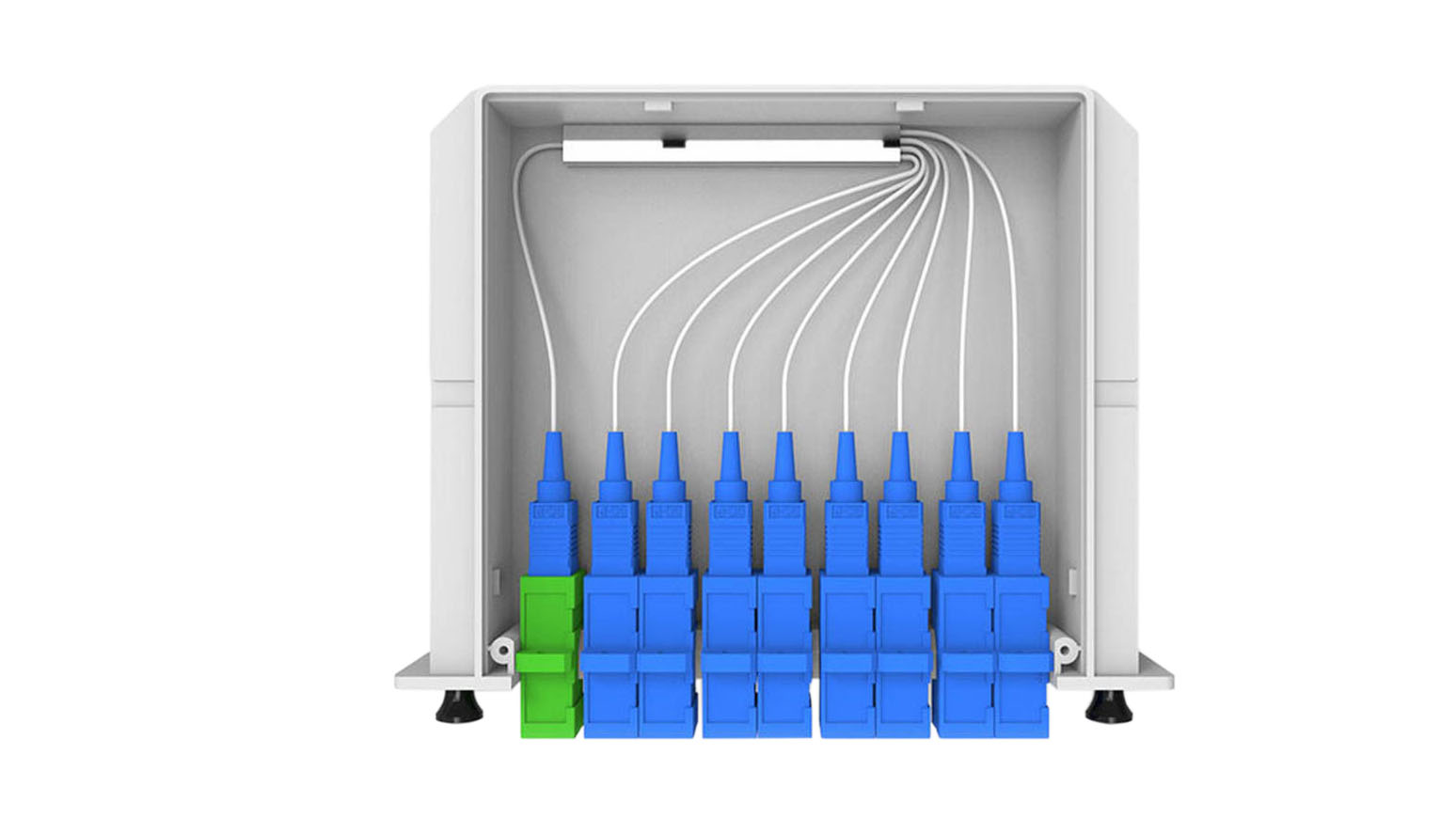

PLC Splitter-Insert Type



Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Optostar provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

         Product Features

  • Low Insertion Loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength:From 1260nm to 1650nm
  • Wide Operating Temperature:From -40℃ to 85℃
  • High Reliablity and Stability


PARAMETER APPLICATION DOWNLOAD CONTACT US

PARAMETER


Specifications 1×N PLC Splitter
Parameters
1×2
1×4
1×8
1×16
1×32
1×64
1×128
Operating Wavelength（nm）
1260~1650
Fiber Type
G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
20.5/21.0
23.8/24.2
Loss Uniformit（dB）
0.4
0.6
0.8
1.2
1.5
2.0
2.5
Polarization Dependent Loss（dB）
0.2
0.2
0.2
0.25
0.3
0.35
0.4
Return Loss(dB)（P/S Grade）
55/50
55/50
55/50
55/50
55/50
55/50
55/50
Directivity（dB）
55
55
55
55
55
55
55
Wavelength Dependent Loss（dB）
0.3
0.3
0.3
0.5
0.5
0.5
0.5
Temperature Stability （-40~85℃）（dB）
0.4
0.4
0.4
0.5
0.5
0.5
0.5
Operating Temperature(℃)
-40~+85
Storage Temperature(℃)
-40~+85
Device Dimension（mm）
40×4×4
40×4×4
40×4×4
50×7×4
50×7×4
60×12×4
N/A
Module Dimension（mm）
100×80×10
120×80×18
141×115×18
Mini-Module Dimension（mm）
50×7×4
60×12×4
80×20×6
100×40×6
N/A


Specifications 2×N PLC Splitter
Parameters
2×2
2×4
2×8
2×16
2×32
2×64
2×128
Operating Wavelength（nm）
1260~1650
Fiber Type
G657A1 or customer specified
Insertion Loss (dB) P/S Grade）
3.9/4/2
7.3/7.6
10.5/11
14.4/14.6
17.4/17.9
21.0/21.5
24.5/25.0
Loss Uniformity（dB）
≤0.6
≤1.0
≤1.2
≤1.5
≤1.8
≤2.2
≤2.5
Polarization Dependent Loss（dB）
≤0.2
≤0.2
≤0.2
≤0.3
≤0.3
≤0.3
≤0.4
Return Loss(dB)(P/S Grade)
≥55
≥55
≥55
≥55
≥55
≥55
≥55
Directivity（dB）
55
55
55
55
55
55
55
Wavelength Dependent Loss（dB）
≤0.3
≤0.4
≤0.5
≤0.5
≤0.5
≤0.5
≤0.5
Fiber Length (m)
1.5(±0.1)or customer specified
Temperature Stability（-40~85℃）（dB）
≤0.5
Operating Temperature(℃)
-20~+75
Storage Temperature(℃)
-40~+85
Maximum Power Handling (mW)
500


ABS type
Item
1×2
1×4
1×8
1×16
1×32
1×64
2×2
2×4
2×8
2×16
2×32
（L*W*H）(mm）
100*80*10
100*80*10
120*80*18
120*80*18
140*115*18
140*115*18
100*80*10
120*80*18
140*115*18

APPLICATION






DOWNLOAD

Description DownLoad

PLC Splitter - Insert Type

Note:
Port：1x2,1x4,1x8,1x16,1x32,1x64,1x128,2x4,2x8,2x16, 2x32, 2x64, 2x128(Optional)
Input Pitgail Style：Bare fiber,900um loose tube, 2.0mm Cable,3.0mm Cable (Optional)
Input Connector：None,FC/APC,FC/PC,SC/APC,SC/PC,ST,LC,LC/APC,E2000,Special (Optional)
Output Pitgail Style：Bare fiber,900um loose tube, 2.0mm Cable,3.0mm Cable (Optional)
Fiber Length：0.5m,1m,1.5m,2m,3m,4m,Special (Optional)
Output Connector： None,FC/APC,FC/PC,SC/APC,SC/PC,ST,LC,LC/APC,E2000,Special (Optional)
Package：Bare,Mini type, ABS box,Insert type,Pallet type,19”1U Rack,Special (Optional)
